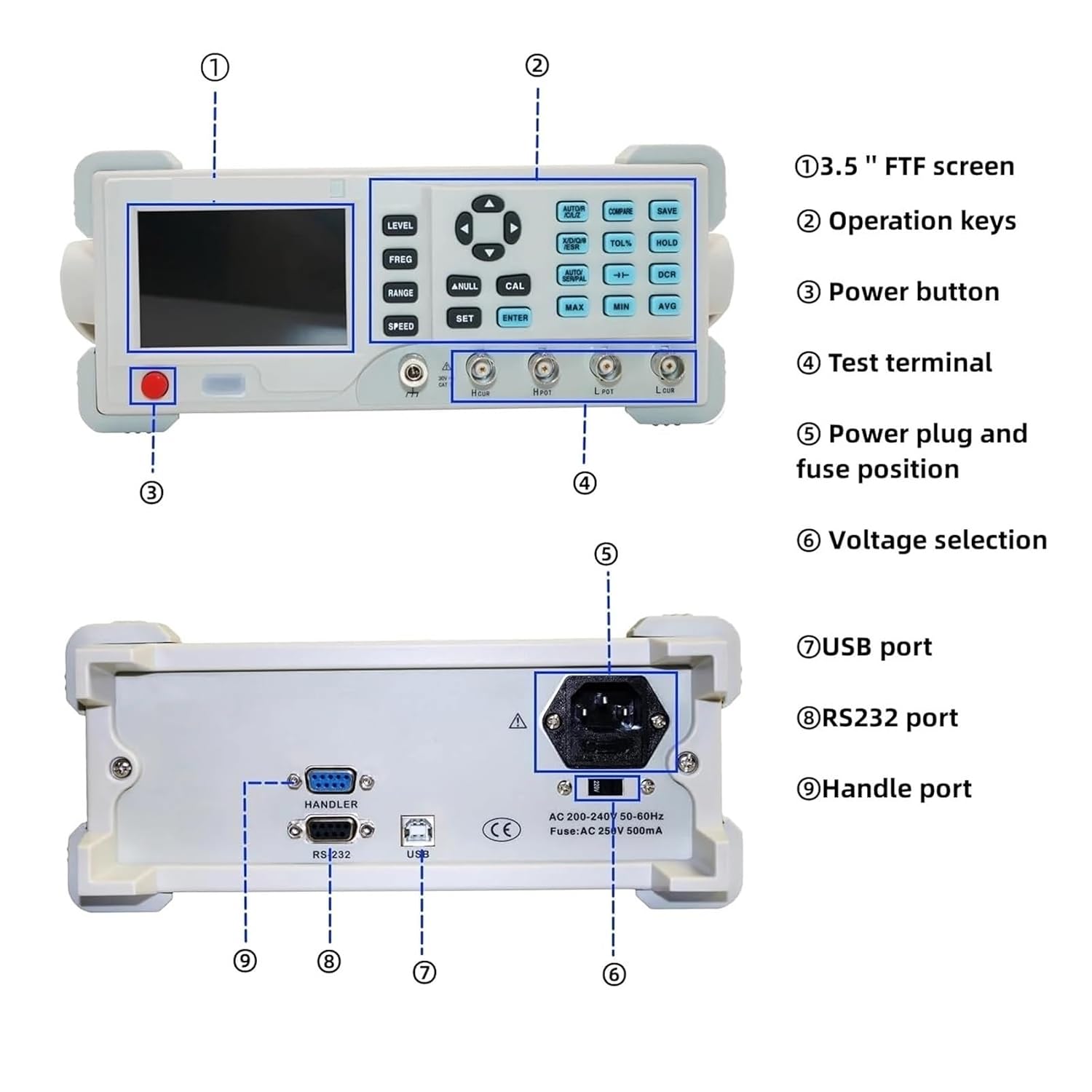

Electronic Load Desktop LCR Meter Continuously Adjustable Capacitance Inductance Test Instrument Electric(ET4401)

Measuring frequency up to 100 KHZ, Test level 10 - 2000 mv, Support dc resistance (DCR), electrolytic capacitor measurement The internal bias output 0 mv - 1500 mv 3.5 inch TFT display, five shows Communications: USB Device, RS232 , Handle, Data record function (maximum, minimum, avera) Support SCPI communication protocol Provide the system Setting, can according to need to configure the Chinese or English, buzzer, screen brightness, etc Basic measurement accuracy of 0.1% Manual and automatic ran With open circuit and short circuit calibration function Comparator separation (5), alarm function neral technical specifications: <;10W Display: 3.5" TFT LCD, resolution 480*320 Interfaces: standard: RS232(or 485), USB Device, Handler ; Service environment: 0°C-40°C Sizes: 265mm*105mm*305mm (L*W*H) Weight: 2.1 kg

• Wide Measurement Ran and Frequency: Measures frequencies up to 100kHz and test levels from 10mV to 2000mV, supporting accurate testing of DC resistance (DCR) and electrolytic capacitors
• Precise and Flexible Output: Features internal bias output ranging from 0mV to 1500mV, with basic measurement accuracy of 0.1%, ensuring reliable and versatile testing across different components
• Advanced Display and Data Recording: Equipped with a 3.5-inch TFT LCD display (480x320 resolution) and a data recording function to track maximum, minimum, and avera values for comprehensive analysis
• Multiple Communication and Connectivity Options: Supports USB Device, RS232, and Handler interfaces for flexible communication, and includes the SCPI communication protocol for smooth data integration
• Customizable System Setting and Calibration: Offers configurable setting for langua (Chinese/English), buzzer, screen brightness, and includes open circuit/short circuit calibration functions and a comparator separation alarm feature for enhanced usability
